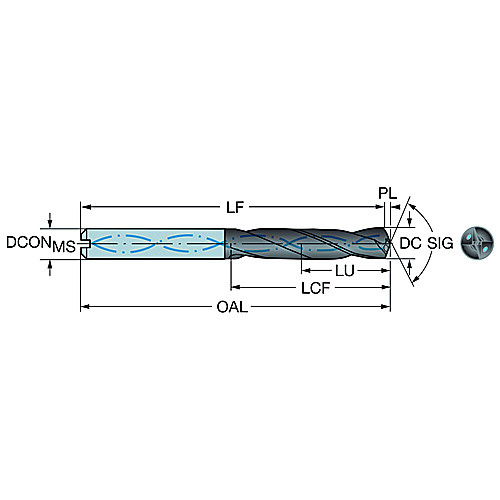

3.18 mm Dia. × 6 mm Shank × 20 mm Flute Length × 62 mm OAL, 150°, TiAlN, 2xD Flute, Coolant Thru, DIN 6537 K, Round Solid Carbide Drill
SC Drill; 3.18 mm Dia. × 6 mm Shank Dia. × 62 mm OAL × 20 mm LCF ; 150 Degrees ; 3xD ; TiAlN
Additional Tariff Surcharge of 8 %
| Drill Bit Size / Cutting Diameter (DC) | 3.18 mm | Shank Type | Round |
| Decimal Equivalent | 0.1252″ | Shank Standard | DIN 6537 K |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 3.18 mm | Shape | Solid Carbide |
| Length Group | 3xD | Cutting Edge Material | Carbide |
| Coating | TiAlN | Tool Type | Solid Carbide Drills |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | Grade | GC34 |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Measurement Type | Metric |
| Coolant Supply Property (CSP) | Internal | Usable Length (LU) | 9.9 mm |
| Point Angle (SIG) | 150 Degrees | Length Chip Flute (LCF) | 20 mm |
| Flute Helix Angle (FHA) | 29 Degrees | Overall Length (OAL) | 62 mm |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.042
