854 1060005A0 N20C

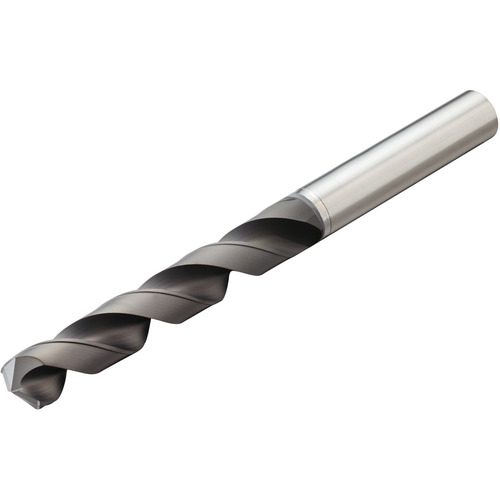

SC Drill; 6 mm Dia. × 6 mm Shank Dia. × 82 mm OAL × 44 mm LCF ; 130 Degrees ; 5xD ; CVDDIA
Additional Tariff Surcharge of 8 %
| Drill Bit Size / Cutting Diameter (DC) | 6 mm | Shank Type | Round |
| Decimal Equivalent | 0.2362″ | Shank Standard | DIN 6537 L |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 6 mm | Shape | Solid Carbide |
| Length Group | 5xD | Cutting Edge Material | Carbide |
| Coating | CVDDIA | Tool Type | Solid Carbide Drills |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Grade | N20C |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Measurement Type | Metric |
| Coolant Supply Property (CSP) | External | Usable Length (LU) | 31.4 mm |
| Point Angle (SIG) | 130 Degrees | Length Chip Flute (LCF) | 44 mm |
| Flute Helix Angle (FHA) | 40 Degrees | Overall Length (OAL) | 82 mm |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.088
