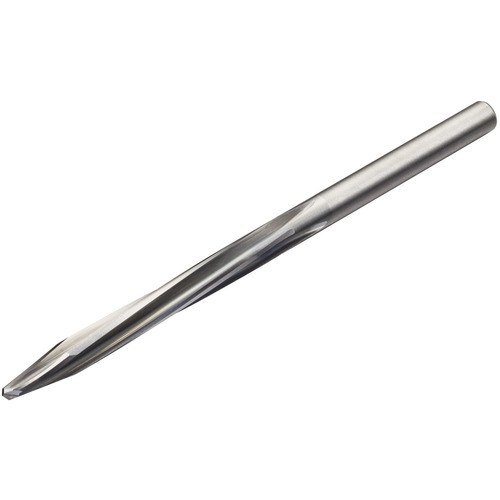

4.17 mm Dia. × 4.17 mm Shank × 60 mm Flute Length × 101.6 mm OAL, 118°, Uncoated, 2xD Flute, External Coolant, Round Solid Carbide Drill
SC Drill; 4.17 mm Dia. × 4.17 mm Shank Dia. × 101.6 mm OAL × 60 mm LCF ; 118 Degrees ; 12xD ; Uncoated
Additional Tariff Surcharge of 8 %
| Drill Bit Size / Cutting Diameter (DC) | 4.17 mm | Shank Type | Round |
| Decimal Equivalent | 0.1642″ | Shape | Solid Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 4.17 mm | Cutting Edge Material | Carbide |
| Length Group | 12xD | Tool Type | Solid Carbide Drills |
| Coating | Uncoated | Grade | H10F |
| Connection Diameter Machine Side (DCONMS) | 4.17 mm | Measurement Type | Metric |
| Coolant Supply Property (CSP) | External | Usable Length (LU) | 53.7 mm |
| Point Angle (SIG) | 118 Degrees | Length Chip Flute (LCF) | 60 mm |
| Flute Helix Angle (FHA) | 5 Degrees | Overall Length (OAL) | 101.6 mm |
Product Features
| Country of Origin | India |
Shipping Info
Package Weight
.044
