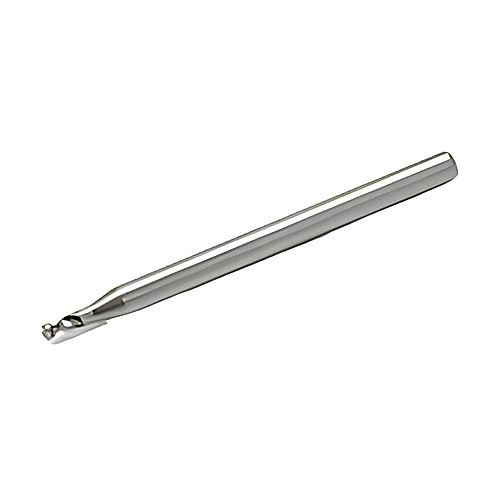

SD22-1.74-3.48-3R1 2XD MICRO DRILL
SC Drill; 1.74 mm Dia. × 3 mm Shank Dia. × 38 mm OAL ; 130 Degrees ; 2xD ; Uncoated
Additional Tariff Surcharge of 8 %
| Drill Bit Size / Cutting Diameter (DC) | 1.74 mm | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 1.74 mm | Shape | Solid Carbide |
| Length Group | 2xD | Cutting Edge Material | Carbide |
| Coating | Uncoated | Tool Type | Solid Carbide Drills |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Measurement Type | Metric |
| Coolant Supply Property (CSP) | External | Usable Length (LU) | 3.5 mm |
| Point Angle (SIG) | 130 Degrees | Overall Length (OAL) | 38 mm |
Product Features
| Country of Origin | SWITZERLAND |
Shipping Info
Package Weight
0.009
