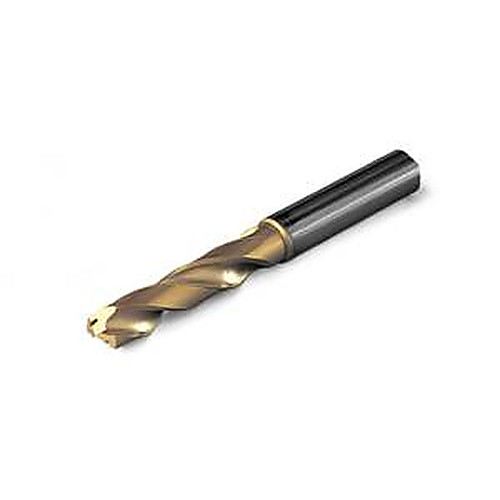

13/32″ Dia. × 12 mm Shank × 55 mm Flute Length × 102 mm OAL, 3xD, 140°, TiAlN, 3xD Flute, Coolant Thru, Round Solid Carbide Drill
SC Drill; 13/32″ Dia. × 12 mm Shank Dia. × 102 mm OAL × 55 mm LCF ; 140 Degrees ; 3xD ; TiAlN
Additional Tariff Surcharge of 8 %
| Drill Bit Size / Cutting Diameter (DC) | 13/32″ | Shape | Solid Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 13/32″ | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.4063″ | Tool Type | Solid Carbide Drills |
| Length Group | 3xD | Measurement Type | Inch |
| Coating | TiAlN | Usable Length (LU) | 31 mm |
| Applicable Material | | Stainless Steel | | Length Chip Flute (LCF) | 55 mm |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Overall Length (OAL) | 102 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Flute Count (NOF) | 2 |
| Point Angle (SIG) | 140 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.234
