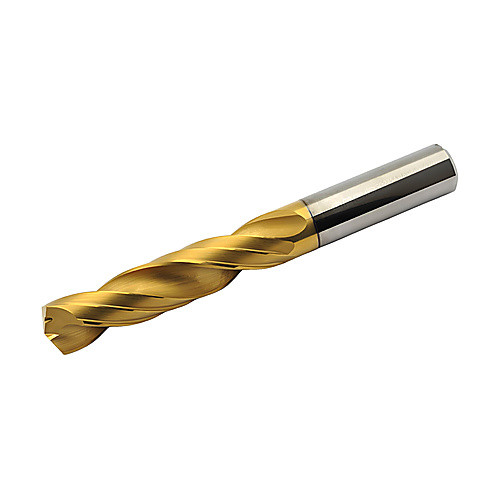

5/16″ Dia. × 8 mm Shank × 53 mm Flute Length × 91 mm OAL, 5xD, 140°, TiN|TiAlN, 5xD Flute, Coolant Thru, Round Solid Carbide Drill
SC Drill; 5/16″ Dia. × 8 mm Shank Dia. × 91 mm OAL × 53 mm LCF ; 140 Degrees ; 5xD ; | TiAlN | TiN |
Additional Tariff Surcharge of 8 %
| Drill Bit Size / Cutting Diameter (DC) | 5/16″ | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 5/16″ | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.3125″ | Tool Type | Solid Carbide Drills |
| Length Group | 5xD | Measurement Type | Inch |
| Coating | | TiAlN | TiN | | Usable Length (LU) | 42 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | Length Chip Flute (LCF) | 53 mm |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Overall Length (OAL) | 91 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Flute Count (NOF) | 5 |
| Point Angle (SIG) | 140 Degrees | Cutting Direction (HAND) | Right Hand |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.128
