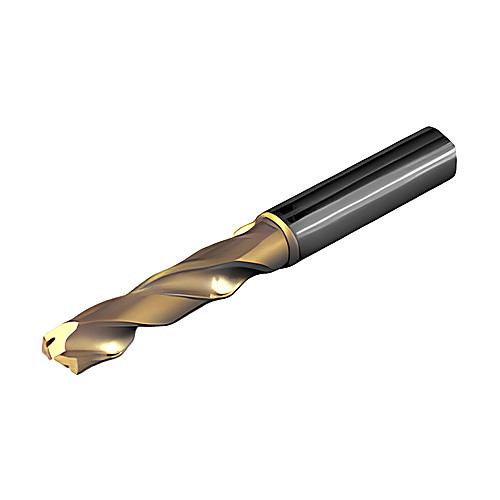

3/16″ Dia. × 6 mm Shank × 28 mm Flute Length × 66 mm OAL, 3xD, 140°, TiAlN, 3xD Flute, Coolant Thru, Round Solid Carbide Drill
SC Drill; 3/16″ Dia. × 6 mm Shank Dia. × 66 mm OAL × 28 mm LCF ; 140 Degrees ; 3xD ; TiAlN
Additional Tariff Surcharge of 8 %
| Drill Bit Size / Cutting Diameter (DC) | 3/16″ | Shape | Solid Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 3/16″ | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.1875″ | Tool Type | Solid Carbide Drills |
| Length Group | 3xD | Measurement Type | Inch |
| Coating | TiAlN | Usable Length (LU) | 20 mm |
| Applicable Material | | Stainless Steel | | Length Chip Flute (LCF) | 28 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Overall Length (OAL) | 66 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Flute Count (NOF) | 2 |
| Point Angle (SIG) | 140 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.033
