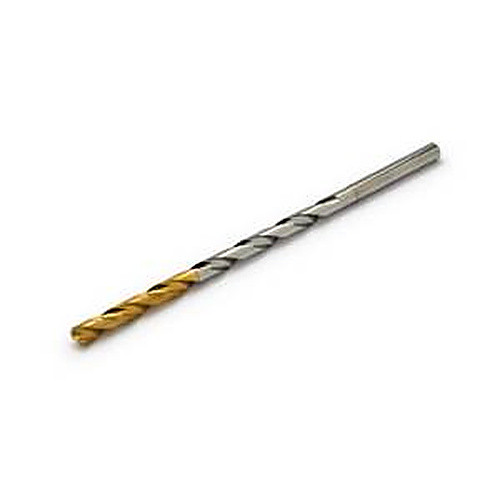

SD216A-6.35-120-8R1
SC Drill; 1/4″ Dia. × 8 mm Shank Dia. × 177 mm OAL × 137 mm LCF ; 136 Degrees ; 16xD ; | TiAlN | TiN |
| Drill Bit Size / Cutting Diameter (DC) | 1/4″ | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 1/4″ | Shape | Solid Carbide |
| Decimal Equivalent | 0.25″ | Cutting Edge Material | Carbide |
| Length Group | 16xD | Tool Type | Solid Carbide Drills |
| Coating | | TiAlN | TiN | | Measurement Type | Inch |
| Applicable Material | | Steel | | Usable Length (LU) | 120 mm |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Length Chip Flute (LCF) | 137 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Overall Length (OAL) | 177 mm |
| Point Angle (SIG) | 136 Degrees | Flute Count (NOF) | 2 |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.119
