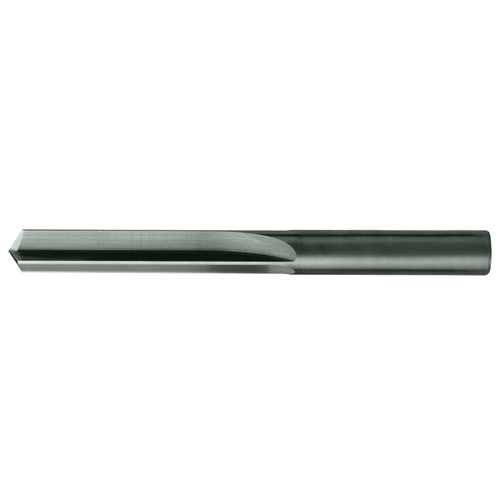

15/32″ Dia. × 0.469″ Shank × 2-1/8″ Flute Length × 3-5/8″ OAL, 140°, Bright, 2xD Flute, Round Solid Carbide Drill
SC Drill; 15/32″ Dia. × 0.17″ Shank Dia. × 2-1/8″ OAL × 1-1/16″ LCF ; 140 Degrees ; Standard ; Straight Flute ; Uncoated ; Series 769
| Drill Bit Size / Cutting Diameter (DC) | 15/32″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 15/32″ | Tool Type | Solid Carbide Drills |
| Decimal Equivalent | 0.17″ | Flute Type | Straight |
| Length Group | Standard | Point Shape | 4 Facet |
| Coating | Uncoated | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.17″ | Series/List # | 769 |
| Point Angle (SIG) | 140 Degrees | Length Chip Flute (LCF) | 1-1/16″ |
| Shank Length (LS) | 1-1/16″ | Overall Length (OAL) | 2-1/8″ |
| Shank Type | Round | Flute Count (NOF) | 2 |
| Shape | Solid Carbide | Cutting Direction (HAND) | Right Hand |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.258
