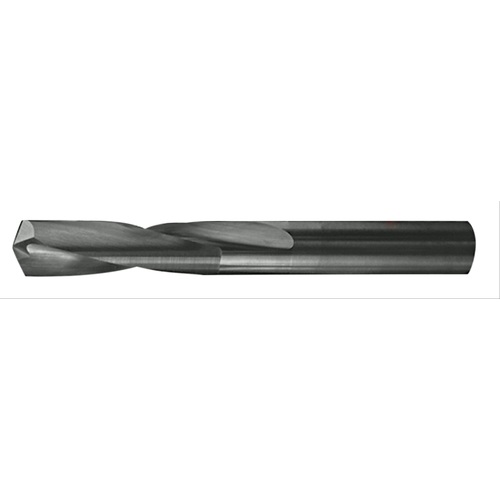

1/8″ Dia. × 1/8″ Shank × 5/8″ Flute Length × 2″ OAL, Stub, 118°, Bright, 2xD Flute, Round Solid Carbide Drill
SC Drill; 1/8″ Dia. × 0.189″ Shank Dia. × 2-3/16″ OAL × 3/4″ LCF ; 118 Degrees ; Stub ; Spiral Flute ; Uncoated ; Series 759
| Drill Bit Size / Cutting Diameter (DC) | 1/8″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 1/8″ | Tool Type | Solid Carbide Drills |
| Decimal Equivalent | 0.189″ | Flute Type | Spiral |
| Length Group | Stub | Point Shape | 4 Facet |
| Coating | Uncoated | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.189″ | Series/List # | 759 |
| Point Angle (SIG) | 118 Degrees | Length Chip Flute (LCF) | 3/4″ |
| Flute Helix Angle (FHA) | CW | Overall Length (OAL) | 2-3/16″ |
| Shank Length (LS) | 1-7/16″ | Flute Count (NOF) | 2 |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Shape | Solid Carbide |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.011
