SD203A-02813-098-0315R1M
SC Drill; 9/32″ Dia. × 8 mm Shank Dia. × 79 mm OAL × 41 mm LCF ; 140 Degrees ; 3xD ; TiAlN

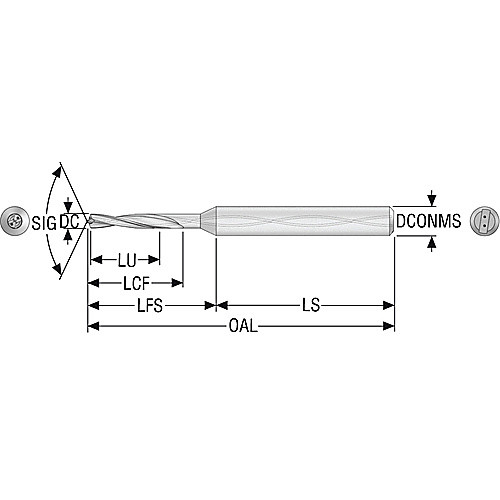

| Drill Bit Size / Cutting Diameter (DC) | 9/32″ | Shape | Solid Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 9/32″ | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.2813″ | Tool Type | Solid Carbide Drills |
| Length Group | 3xD | Measurement Type | Inch |
| Coating | TiAlN | Usable Length (LU) | 25 mm |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Length Chip Flute (LCF) | 41 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Overall Length (OAL) | 79 mm |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 2 |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.009
