SD203A-02188-083-0236R1M
SC Drill; 7/32″ Dia. × 6 mm Shank Dia. × 66 mm OAL × 28 mm LCF ; 140 Degrees ; 3xD ; TiAlN

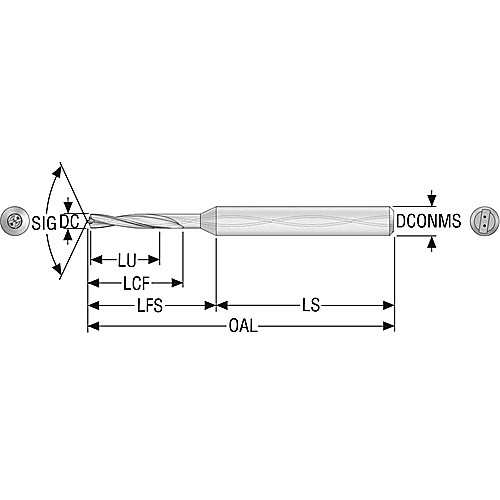

| Drill Bit Size / Cutting Diameter (DC) | 7/32″ | Shape | Solid Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 7/32″ | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.2188″ | Tool Type | Solid Carbide Drills |
| Length Group | 3xD | Measurement Type | Inch |
| Coating | TiAlN | Usable Length (LU) | 20 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Length Chip Flute (LCF) | 28 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Overall Length (OAL) | 66 mm |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 2 |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.044
