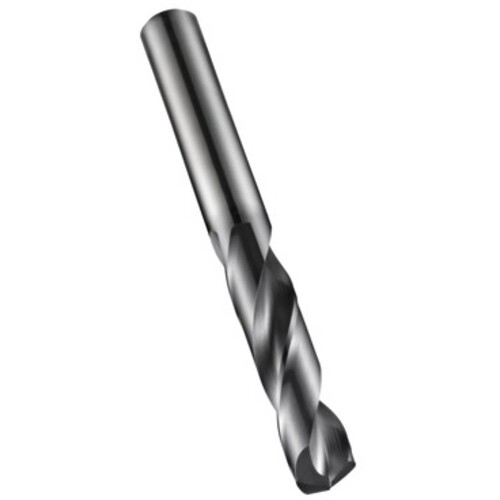

11.2 mm Dia. × 12 mm Shank × 55 mm Flute Length × 102 mm OAL, 140°, TiAlN, External Coolant, DIN 6535 HA | DIN 6537 K, Round Solid Carbide Drill
SC Drill; 11.2 mm Dia. × 12 mm Shank Dia. × 102 mm OAL × 55 mm LCF ; 140 Degrees ; Short ; TiAlN ; Series R458
Additional Tariff Surcharge of 8 %
| Drill Bit Size / Cutting Diameter (DC) | 11.2 mm | Flute Helix Angle (FHA) | CW |
| Decimal Equivalent | 0.4409″ | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 11.2 mm | Shank Standard | DIN 6535 HA | DIN 6537 K |
| Length Group | Short | Shape | Solid Carbide |
| Coating | TiAlN | Cutting Edge Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Tool Type | Solid Carbide Drills |
| Application | General Drilling | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Series/List # | R458 |
| Coolant Supply Property (CSP) | External | Length Chip Flute (LCF) | 55 mm |
| Point Angle (SIG) | 140 Degrees | Overall Length (OAL) | 102 mm |
Product Features
| Family Description | E-code # R45811.2 | Country of Origin | Brazil |
Shipping Info
Package Weight
4.365
