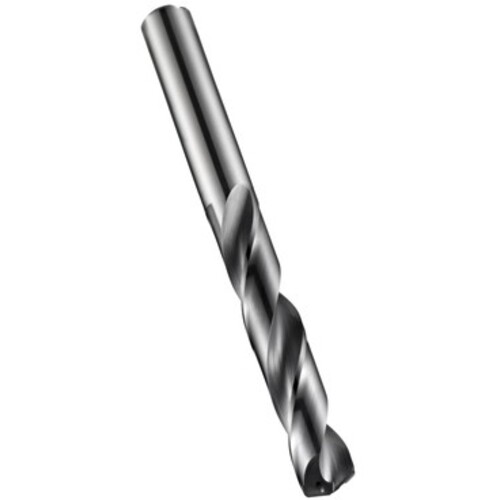

23/64″ Dia. × 10 mm Shank × 61 mm Flute Length × 103 mm OAL, 140°, TiAlN, Coolant Thru, DIN 6535 HA | DIN 6537 L, Round Solid Carbide Drill
SC Drill; 23/64″ Dia. × 10 mm Shank Dia. × 103 mm OAL × 61 mm LCF ; 140 Degrees ; Long ; TiAlN ; Series R453
Additional Tariff Surcharge of 8 %
| Drill Bit Size / Cutting Diameter (DC) | 23/64″ | Flute Helix Angle (FHA) | CW |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 23/64″ | Shank Type | Round |
| Decimal Equivalent | 0.3594″ | Shank Standard | DIN 6535 HA | DIN 6537 L |
| Length Group | Long | Shape | Solid Carbide |
| Coating | TiAlN | Cutting Edge Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Tool Type | Solid Carbide Drills |
| Application | General Drilling | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Series/List # | R453 |
| Coolant Supply Property (CSP) | Coolant Thru | Length Chip Flute (LCF) | 61 mm |
| Point Angle (SIG) | 140 Degrees | Overall Length (OAL) | 103 mm |
Product Features
| Family Description | E-code # R45323/64 | Country of Origin | Brazil |
Shipping Info
Package Weight
0.175
