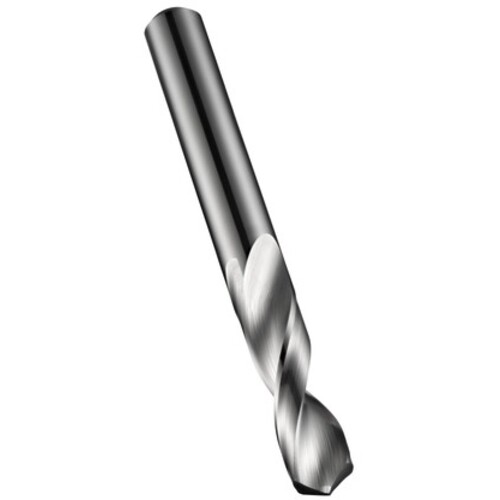

6.20MMDormer HM Bright 120 Stub Drill Short DIN 6539 E-code # R1206.2
Solid Carbide Drill; 6.2 mm Dia. × 70 mm OAL × 31 mm LCF ; 120 Degrees ; Short/Stub ; Bright ; Series R120
| Drill Bit Size / Cutting Diameter (DC) | 6.2 mm | Shank Type | Round |
| Decimal Equivalent | 0.2441″ | Shank Standard | DIN 6539 |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 6.2 mm | Shape | Solid Carbide |
| Length Group | Stub | Cutting Edge Material | Carbide |
| Coating | Bright | Tool Type | Solid Carbide Drills |
| Applicable Material | Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | Other Non-Metallic Materials | Measurement Type | Metric |
| Application | General Drilling | Series/List # | R120 |
| Coolant Supply Property (CSP) | External | Length Chip Flute (LCF) | 31 mm |
| Point Angle (SIG) | 120 Degrees | Overall Length (OAL) | 70 mm |
| Flute Helix Angle (FHA) | CW |
Product Features
| Family Description | E-code # R1206.2 | Country of Origin | Japan |
Shipping Info
Package Weight
1.015
