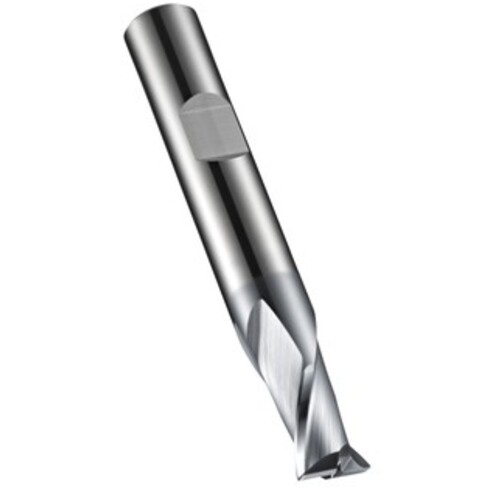

12.00 MM Dormer HM ALCRONA DIN 6535 HB Shank Slot Drill N DIN 6527 K E-code # S802HB12.0
SC Drill; 12 mm Dia. × 12 mm Shank Dia. × 73 mm OAL ; Extra Short ; AlCrN ; Series S802HB
Additional Tariff Surcharge of 8 %
| Drill Bit Size / Cutting Diameter (DC) | 12 mm | Flute Helix Angle (FHA) | 30 Degrees |
| Decimal Equivalent | 0.4724″ | Shank Type | Weldon |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 12 mm | Shank Standard | DIN 6527 K |
| Length Group | Extra Short | Cutting Edge Material | Carbide |
| Coating | AlCrN | Tool Type | Milling Cutters |
| Applicable Material | | Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Measurement Type | Metric |
| Application | Shank Cutter Slotting | Series/List # | S802HB |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Overall Length (OAL) | 73 mm |
| Head Length (LH) | 12 mm |
Product Features
| Family Description | E-code # S802HB12.0 | Country of Origin | Italy |
Shipping Info
Package Weight
3.941
