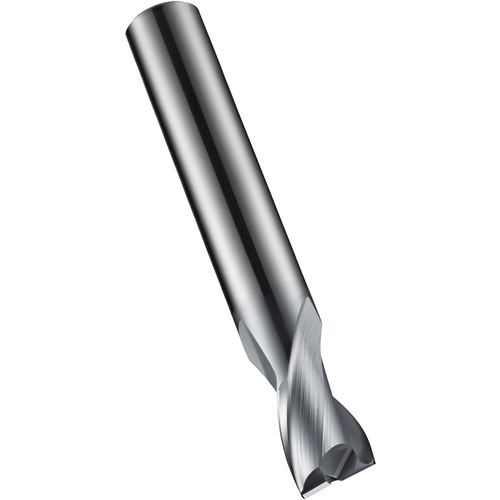

4.00 MM Dormer HM ALCRONA DIN 6535 HA Shank Slot Drill N DIN 6527 K E-code # S802HA4.0
SC Drill; 4 mm Dia. × 6 mm Shank Dia. × 54 mm OAL ; Extra Short ; AlCrN ; Series S802HA
Additional Tariff Surcharge of 8 %
| Drill Bit Size / Cutting Diameter (DC) | 4 mm | Flute Helix Angle (FHA) | 30 Degrees |
| Decimal Equivalent | 0.1575″ | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 4 mm | Shank Standard | DIN 6527 K |
| Length Group | Extra Short | Cutting Edge Material | Carbide |
| Coating | AlCrN | Tool Type | Milling Cutters |
| Applicable Material | | Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Measurement Type | Metric |
| Application | Shank Cutter Slotting | Series/List # | S802HA |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Overall Length (OAL) | 54 mm |
| Head Length (LH) | 5 mm |
Product Features
| Family Description | E-code # S802HA4.0 | Country of Origin | Italy |
Shipping Info
Package Weight
0.753
