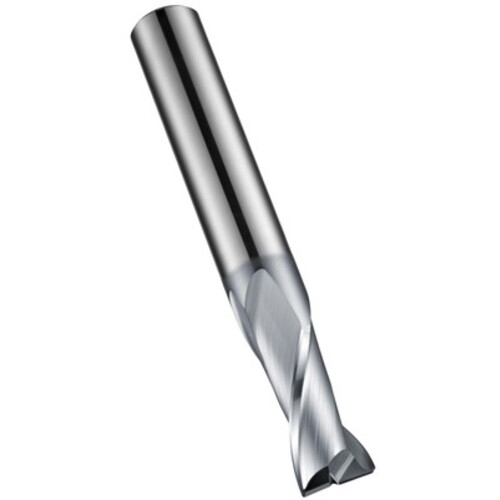

18.00 MM Dormer HM ALCRONA DIN 6535 HA Shank Slot Drill N DIN 6527 L E-code # S812HA18.0
SC Drill; 18 mm Dia. × 18 mm Shank Dia. × 92 mm OAL ; Short | Stub ; AlCrN ; Series S812HA
Additional Tariff Surcharge of 8 %
| Drill Bit Size / Cutting Diameter (DC) | 18 mm | Flute Helix Angle (FHA) | 30 Degrees |
| Decimal Equivalent | 0.7087″ | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 18 mm | Shank Standard | DIN 6527 L |
| Length Group | Short | Stub | Cutting Edge Material | Carbide |
| Coating | AlCrN | Tool Type | Milling Cutters |
| Applicable Material | | Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Measurement Type | Metric |
| Application | Shank Cutter Slotting | Series/List # | S812HA |
| Connection Diameter Machine Side (DCONMS) | 18 mm | Overall Length (OAL) | 92 mm |
| Head Length (LH) | 26 mm |
Product Features
| Family Description | E-code # S812HA18.0 | Country of Origin | Italy |
Shipping Info
Package Weight
10.045
