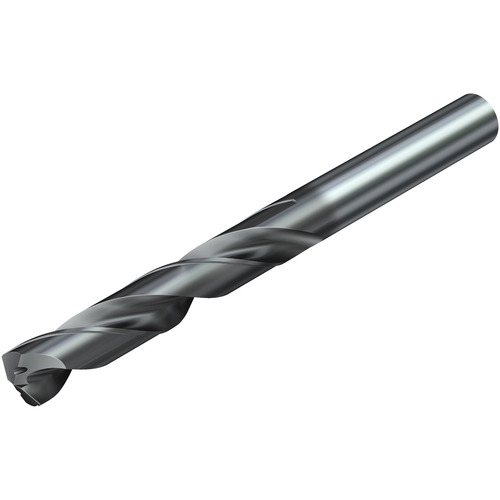

0.128″ Dia. × 0.236″ Shank × 1.1″ Flute Length × 2.6″ OAL, 5xD, 140°, TiAlN, 2xD Flute, Coolant Thru, DIN 6537 L, Round Solid Carbide Drill
SC Drill; 0.128″ Dia. × 0.236″ Shank Dia. × 2.6″ OAL × 1.1″ LCF ; 140 Degrees ; 5xD ; TiAlN
Additional Tariff Surcharge of 8 %
| Drill Bit Size / Cutting Diameter (DC) | 0.128″ | Shank Standard | DIN 6537 L |
| Decimal Equivalent | 0.128″ | Cutting Edge Material | Carbide |
| Length Group | 5xD | Tool Type | Solid Carbide Drills |
| Coating | TiAlN | Grade | GC34 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.236″ | Usable Length (LU) | 0.66″ |
| Coolant Supply Property (CSP) | Internal | Length Chip Flute (LCF) | 1.1″ |
| Point Angle (SIG) | 140 Degrees | Overall Length (OAL) | 2.6″ |
| Flute Helix Angle (FHA) | 29.6 Degrees | Flute Count (NOF) | 2 |
| Shank Type | Round |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.057
