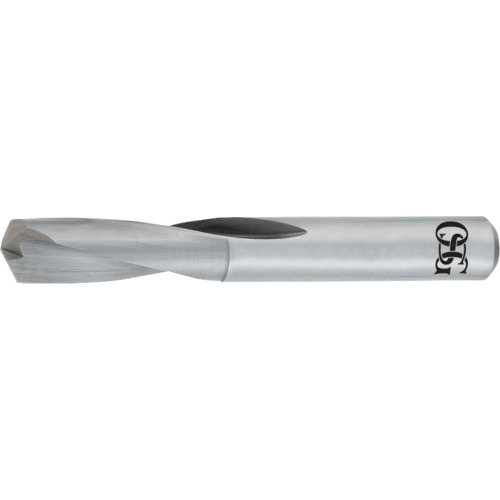

3/16 CARBIDE SP FL
SC Drill; 3/16″ Dia. × 3/16″ Shank Dia. × 2-3/16″ OAL × 1-1/8″ LCF ; 135 Degrees ; Jobber ; Slow Spiral Flute ; Uncoated ; Series 215
| Drill Bit Size / Cutting Diameter (DC) | 3/16″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 3/16″ | Tool Type | Jobber Drill |
| Decimal Equivalent | 0.1875″ | Flute Type | Slow Spiral |
| Length Group | Jobber | Measurement Type | Inch |
| Coating | Uncoated | Series/List # | 215 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Usable Length (LU) | 1-1/8″ |
| Connection Diameter Machine Side (DCONMS) | 3/16″ | Length Chip Flute (LCF) | 1-1/8″ |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 2-3/16″ |
| Point Angle (SIG) | 135 Degrees | Flute Count (NOF) | 2 |
| Functional Length (LF) | 1-1/8″ | Cutting Direction (HAND) | Right Hand |
| Shape | Jobber Drill |
Product Features
| Country of Origin | India |
Shipping Info
Package Length
3.25000
Package Width
.45000
Package Height
.30000
Package Weight
0.005
