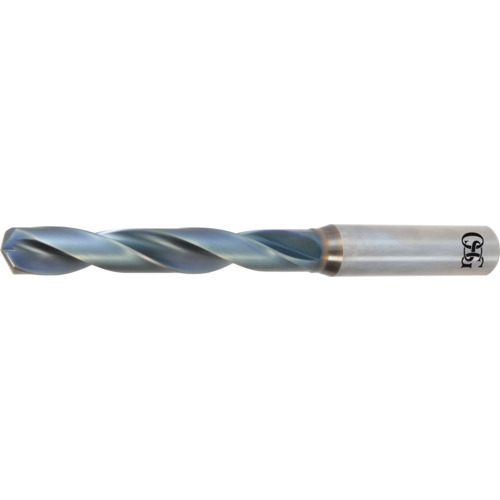

19/64″ Dia. × 8 mm Shank × 53 mm Flute Length × 91 mm OAL, 5xD, TiAlN, 2xD Flute, Solid Carbide Drill
SC Drill; 19/64″ Dia. × 8 mm Shank Dia. × 91 mm OAL × 53 mm LCF ; 140 Degrees ; 5xD ; Spiral Flute ; EgiAs ; Series HP245
| Drill Bit Size / Cutting Diameter (DC) | 19/64″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 19/64″ | Tool Type | Solid Carbide Drills |
| Decimal Equivalent | 0.2969″ | Flute Type | Spiral |
| Length Group | 5xD | Measurement Type | Inch |
| Coating | EgiAs | Series/List # | HP245 |
| Applicable Material | | Hard Materials | Aluminum / Non-Ferrous Materials | | Usable Length (LU) | 53 mm |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Length Chip Flute (LCF) | 53 mm |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 91 mm |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 2 |
| Functional Length (LF) | 53 mm | Cutting Direction (HAND) | Right Hand |
Product Features
| Country of Origin | India |
Shipping Info
Package Length
3.65000
Package Width
.45000
Package Height
.40000
Package Weight
0.135
