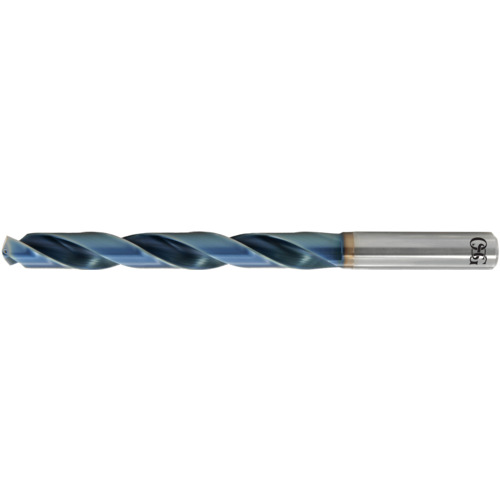

37/64″ Dia. × 25/64″ Shank × 152 mm Flute Length × 204 mm OAL, 8xD, TiAlN, 2xD Flute, Solid Carbide Drill
SC Drill; 37/64″ Dia. × 25/64″ Shank Dia. × 204 mm OAL × 152 mm LCF ; 140 Degrees ; 8xD ; EgiAs ; Series HP258
| Drill Bit Size / Cutting Diameter (DC) | 37/64″ | Shape | Solid Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 37/64″ | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.5781″ | Tool Type | Solid Carbide Drills |
| Length Group | 8xD | Measurement Type | Inch |
| Coating | EgiAs | Series/List # | HP258 |
| Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Usable Length (LU) | 152 mm |
| Connection Diameter Machine Side (DCONMS) | 25/64″ | Length Chip Flute (LCF) | 152 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Overall Length (OAL) | 204 mm |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 2 |
| Functional Length (LF) | 152 mm | Cutting Direction (HAND) | Right Hand |
Product Features
| Country of Origin | India |
Shipping Info
Package Length
7.95000
Package Width
.95000
Package Height
.90000
Package Weight
0.75
