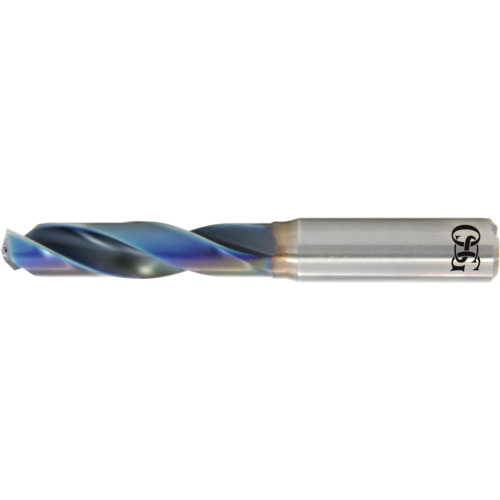

6.00MM HP CARB DRILL 3D
SC Drill; 6 mm Dia. × 6 mm Shank Dia. × 66 mm OAL × 28 mm LCF ; 140 Degrees ; 3xD ; Spiral Flute ; EgiAs ; Series HP243
| Drill Bit Size / Cutting Diameter (DC) | 6 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 6 mm | Tool Type | Solid Carbide Drills |
| Length Group | 3xD | Flute Type | Spiral |
| Coating | EgiAs | Measurement Type | Metric |
| Applicable Material | | Hard Materials | Aluminum / Non-Ferrous Materials | | Series/List # | HP243 |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Usable Length (LU) | 28 mm |
| Coolant Supply Property (CSP) | External | Length Chip Flute (LCF) | 28 mm |
| Point Angle (SIG) | 140 Degrees | Overall Length (OAL) | 66 mm |
| Functional Length (LF) | 28 mm | Flute Count (NOF) | 2 |
| Shape | Solid Carbide | Cutting Direction (HAND) | Right Hand |
Product Features
| Country of Origin | India |
Shipping Info
Package Length
2.55000
Package Width
.50000
Package Height
.45000
Package Weight
0.09
