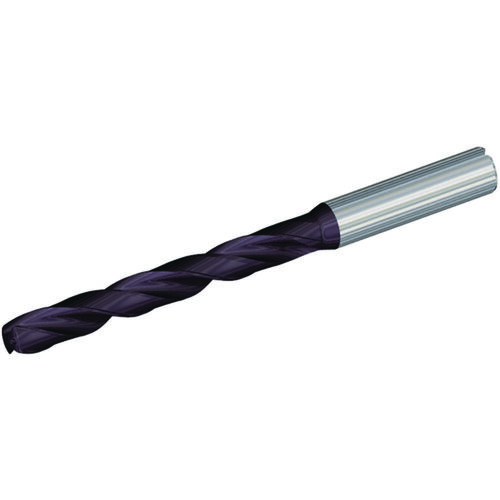

8.7 mm Dia. × 10 mm Shank × 138 mm Flute Length × 185 mm OAL, 132°, TiAlN, Coolant Thru, Round Solid Carbide Drill
SC Drill; 8.7 mm Dia. × 10 mm Shank Dia. × 185 mm OAL × 138 mm LCF ; 132 Degrees ; 12xD ; Spiral Flute ; TiAlN
Additional Tariff Surcharge of 8.5 %
| Drill Bit Size / Cutting Diameter (DC) | 8.7 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 8.7 mm | Tool Type | Center Cut |
| Length Group | 12xD | Flute Type | Spiral |
| Coating | TiAlN | Grade | WU20PD |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Usable Length (LU) | 118 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Length Chip Flute (LCF) | 138 mm |
| Point Angle (SIG) | 132 Degrees | Overall Length (OAL) | 185 mm |
| Flute Helix Angle (FHA) | 28.2 Degrees | Flute Count (NOF) | 2 |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Shape | Center Cut |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.2315
