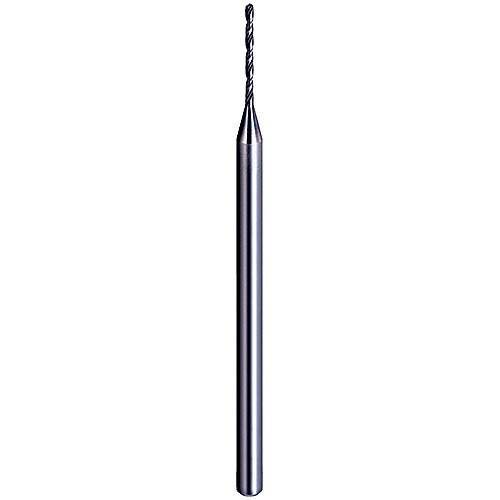

MWS00200LB VP15TF
SC Drill; 0.02″ Dia. × 1/8″ Shank Dia. × 1.855″ OAL × 0.319″ LCF ; 135 Degrees ; 5xD ; Series MWS_INCH
| Drill Bit Size / Cutting Diameter (DC) | 0.02″ | Flute Helix Angle (FHA) | 25 Degrees |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.02″ | Cutting Edge Material | Carbide |
| Length Group | 5xD | Grade | VP15TF |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Series/List # | MWS_INCH |
| Head Length (LH) | 0.516″ | Usable Length (LU) | 0.104″ |
| Coolant Supply Property (CSP) | Coolant Thru | Length Chip Flute (LCF) | 0.319″ |
| Point Angle (SIG) | 135 Degrees | Overall Length (OAL) | 1.855″ |
| Point Length (PL) | 0.004″ | Flute Count (NOF) | 2 |
| Functional Length (LF) | 1.85″ | Feature | For high accuracy and efficient drilling of steels, carbon steels and difficult-to-cut materials. |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.4
