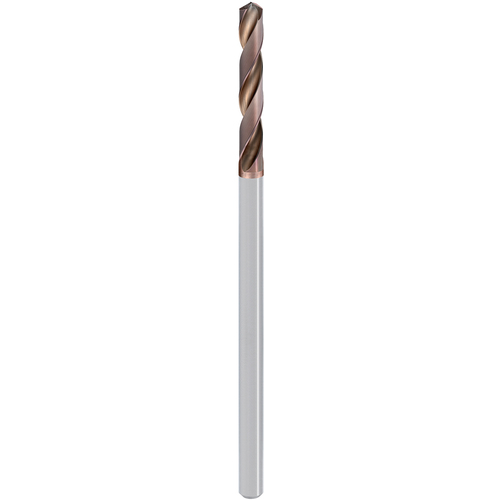

MVE0410X02S060 DP1020 4.1 mm Dia. × 6 mm Shank × 22.7 mm Flute Length × 62.7 mm OAL, 140°, 2 Flute, External Coolant, Solid Carbide Drill
SC Drill; 4.1 mm Dia. × 6 mm Shank Dia. × 62.7 mm OAL × 22.7 mm LCF ; 140 Degrees ; 2xD ; Series MVE
| Drill Bit Size / Cutting Diameter (DC) | 4.1 mm | Flute Helix Angle (FHA) | 30 Degrees |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 4.1 mm | Cutting Edge Material | Carbide |
| Length Group | 2xD | Grade | DP1020 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Series/List # | MVE |
| Head Length (LH) | 24.7 mm | Usable Length (LU) | 8.9 mm |
| Coolant Supply Property (CSP) | External | Length Chip Flute (LCF) | 22.7 mm |
| Point Angle (SIG) | 140 Degrees | Overall Length (OAL) | 62.7 mm |
| Point Length (PL) | 0.7 mm | Flute Count (NOF) | 2 |
| Functional Length (LF) | 62 mm | Feature | New grade DP1020 offers long tool life for a wide range of work materials.,The unique wavy cutting edge provides excellent sharpness and rigidity and helps to control wear at the periphery. |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.4
