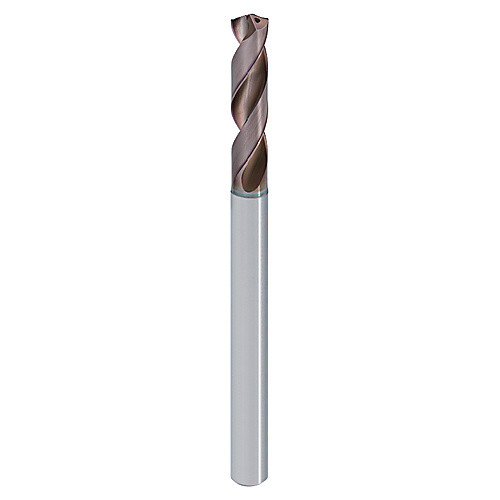

MVS0873X05S100 DP1020 0.3438″ Dia. × 0.394″ Shank × 2.898″ Flute Length × 5.063″ OAL, 140°, 2 Flute, Coolant Thru, Solid Carbide Drill
SC Drill; 0.3438″ Dia. × 0.394″ Shank Dia. × 5.063″ OAL × 2.898″ LCF ; 140 Degrees ; 5xD ; Series MVS_INCH
| Drill Bit Size / Cutting Diameter (DC) | 0.3438″ | Flute Helix Angle (FHA) | 30 Degrees |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.3438″ | Cutting Edge Material | Carbide |
| Length Group | 5xD | Grade | DP1020 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.394″ | Series/List # | MVS_INCH |
| Head Length (LH) | 2.976″ | Usable Length (LU) | 1.782″ |
| Coolant Supply Property (CSP) | Coolant Thru | Length Chip Flute (LCF) | 2.898″ |
| Point Angle (SIG) | 140 Degrees | Overall Length (OAL) | 5.063″ |
| Point Length (PL) | 0.063″ | Flute Count (NOF) | 2 |
| Functional Length (LF) | 5″ | Feature | New grade DP1020 offers long tool life for a wide range of work materials.,Unique coolant supply technology, TRI-cooling offers high machining efficiency. (on drills over ø6) |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.4
