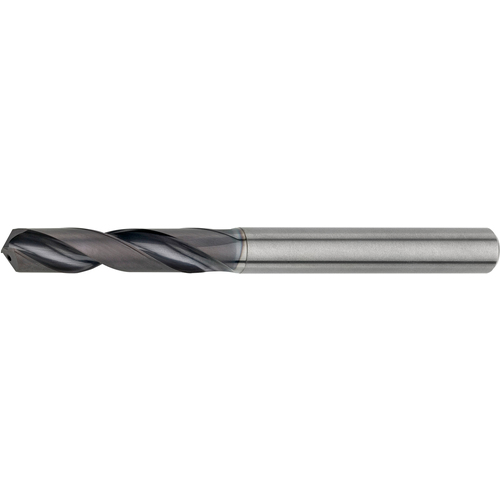

MWS00960SB VP15TF
SC Drill; 0.096″ Dia. × 1/8″ Shank Dia. × 2.929″ OAL × 0.496″ LCF ; 145 Degrees ; 1xD ; Series MWS_INCH
| Drill Bit Size / Cutting Diameter (DC) | 0.096″ | Flute Helix Angle (FHA) | 30 Degrees |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.096″ | Cutting Edge Material | Carbide |
| Length Group | 1xD | Grade | VP15TF |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Series/List # | MWS_INCH |
| Head Length (LH) | 0.551″ | Usable Length (LU) | 0.112″ |
| Coolant Supply Property (CSP) | Coolant Thru | Length Chip Flute (LCF) | 0.496″ |
| Point Angle (SIG) | 145 Degrees | Overall Length (OAL) | 2.929″ |
| Point Length (PL) | 0.016″ | Flute Count (NOF) | 2 |
| Functional Length (LF) | 2.913″ | Feature | For high accuracy and efficient drilling of steels, carbon steels and difficult-to-cut materials. |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.05
