MVS0530X05S060 DP1020

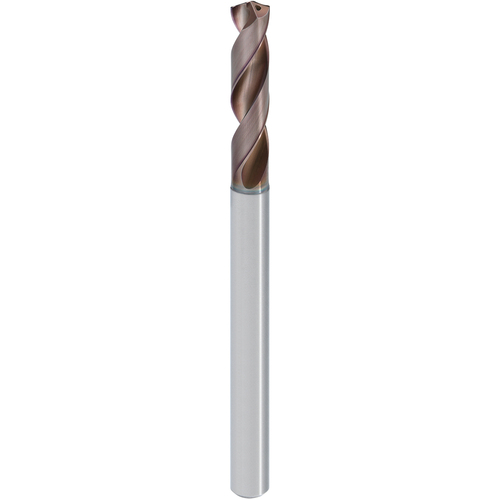

SC Drill; 5.3 mm Dia. × 6 mm Shank Dia. × 101 mm OAL × 45 mm LCF ; 140 Degrees ; 5xD ; Series MVS
| Drill Bit Size / Cutting Diameter (DC) | 5.3 mm | Flute Helix Angle (FHA) | 30 Degrees |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 5.3 mm | Cutting Edge Material | Carbide |
| Length Group | 5xD | Grade | DP1020 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Series/List # | MVS |
| Head Length (LH) | 49 mm | Usable Length (LU) | 27.5 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Length Chip Flute (LCF) | 45 mm |
| Point Angle (SIG) | 140 Degrees | Overall Length (OAL) | 101 mm |
| Point Length (PL) | 1 mm | Flute Count (NOF) | 2 |
| Functional Length (LF) | 100 mm | Feature | New grade DP1020 offers long tool life for a wide range of work materials.,Unique coolant supply technology, TRI-cooling offers high machining efficiency. (on drills over ø6) |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.4
