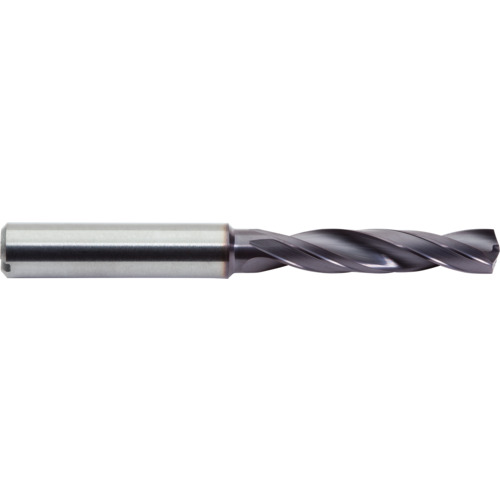

12.9 mm Dia. × 6.8 mm Shank × 60 mm Flute Length × 107 mm OAL, Stub, 2xD Flute, Coolant Thru, Solid Carbide Drill
SC Drill; 12.9 mm Dia. × 6.8 mm Shank Dia. × 107 mm OAL × 60 mm LCF ; Stub ; Series CXDCS
| Drill Bit Size / Cutting Diameter (DC) | 12.9 mm | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.5079″ | Tool Type | High Performance |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 12.9 mm | Measurement Type | Metric |
| Length Group | Stub | Series/List # | CXDCS |
| Connection Diameter Machine Side (DCONMS) | 6.8 mm | Usable Length (LU) | 43 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Length Chip Flute (LCF) | 60 mm |
| Shape | High Performance | Overall Length (OAL) | 107 mm |
Product Features
| Family Description | Alternate Manufacture # 06909 | Country of Origin | USA |
Shipping Info
Package Length
4.21000
Package Width
.63000
Package Height
.63000
Package Weight
.365
