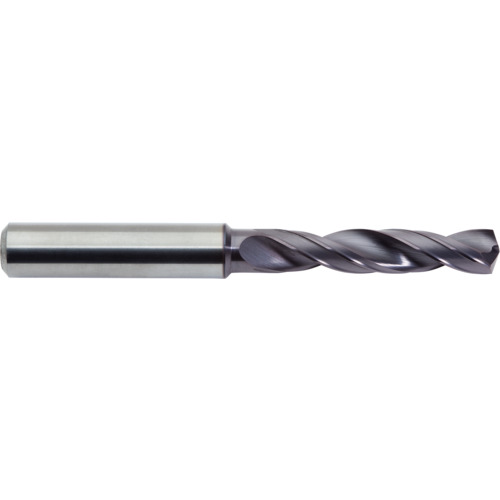

19/64″ Dia. × 5/16″ Shank × 1.61″ Flute Length × 3.11″ OAL, Stub, 2xD Flute, Solid Carbide Drill
SC Drill; 19/64″ Dia. × 5/16″ Shank Dia. × 3.11″ OAL × 1.61″ LCF ; Stub ; Series CXDSS
| Drill Bit Size / Cutting Diameter (DC) | 19/64″ | Tool Type | High Performance |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 19/64″ | Measurement Type | Inch |
| Decimal Equivalent | 0.2969″ | Series/List # | CXDSS |
| Length Group | Stub | Usable Length (LU) | 1.14″ |
| Connection Diameter Machine Side (DCONMS) | 5/16″ | Length Chip Flute (LCF) | 1.61″ |
| Shape | High Performance | Overall Length (OAL) | 3.11″ |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Alternate Manufacture # 06681 | Country of Origin | USA |
Shipping Info
Package Length
3.11000
Package Width
.31000
Package Height
.31000
Package Weight
.092
