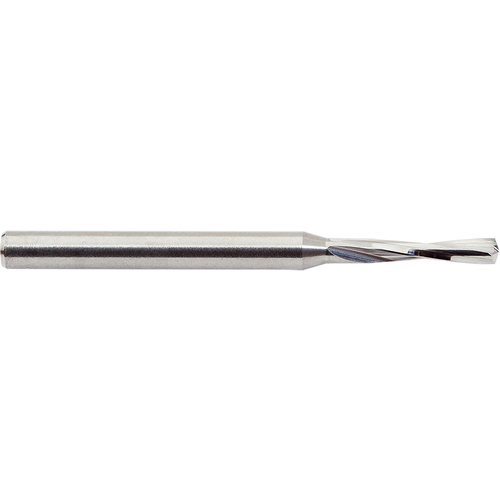

0.79 mm Dia. × 3 mm Shank × 10.2 mm Flute Length × 38 mm OAL, 13xD, 135°, Uncoated, 2 Flute, External, Round Solid Carbide Drill
SC Drill; 0.79 mm Dia. × 3 mm Shank Dia. × 38 mm OAL × 10.2 mm LCF ; 135 Degrees ; 13xD ; Uncoated ; Series 305
| Drill Bit Size / Cutting Diameter (DC) | 0.79 mm | Shape | Solid Carbide |
| Decimal Equivalent | 0.0311″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 0.79 mm | Tool Type | Solid Carbide Drills |
| Length Group | 13xD | Measurement Type | Metric |
| Coating | Uncoated | Series/List # | 305 |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Usable Length (LU) | 10.16 mm |
| Coolant Supply Property (CSP) | External | Length Chip Flute (LCF) | 10.2 mm |
| Point Angle (SIG) | 135 Degrees | Overall Length (OAL) | 38 mm |
| Flute Helix Angle (FHA) | 12 Degrees | Flute Count (NOF) | 2 |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | Alternate Manufacture # 305M0079 | Country of Origin | USA |
Shipping Info
Package Length
2.50000
Package Width
.39400
Package Height
.39400
Package Weight
.001
