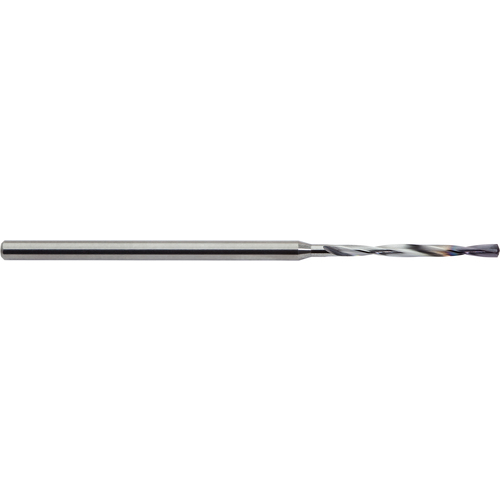

2.35 mm Dia. × 3 mm Shank × 28 mm Flute Length × 74 mm OAL, AlTiN, 2xD Flute, Coolant Thru, Solid Carbide Drill
SC Drill; 2.35 mm Dia. × 3 mm Shank Dia. × 74 mm OAL × 28 mm LCF ; 10xD ; TiAlN ; Series 2MDCL
| Drill Bit Size / Cutting Diameter (DC) | 2.35 mm | Shape | Solid Carbide |
| Decimal Equivalent | 0.0925″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 2.35 mm | Tool Type | Solid Carbide Drills |
| Length Group | 10xD | Measurement Type | Metric |
| Coating | TiAlN | Series/List # | 2MDCL |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Length Chip Flute (LCF) | 28 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Overall Length (OAL) | 74 mm |
Product Features
| Family Description | Alternate Manufacture # 04212 | Country of Origin | USA |
Shipping Info
Package Length
2.90000
Package Width
.31000
Package Height
.31000
Package Weight
0.012
