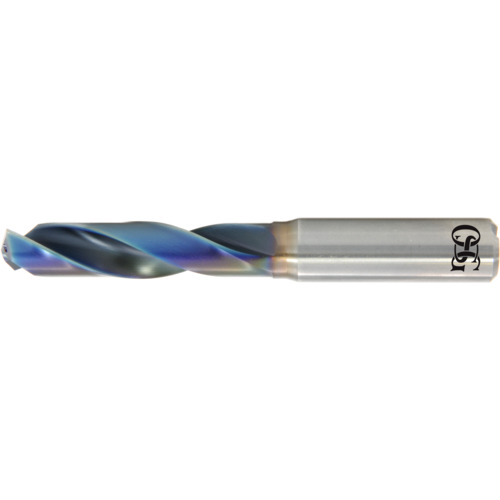

8.80MM HP CARB DRILL 3D
SC Drill; 8.8 mm Dia. x #15 Shank Dia. × 89 mm OAL × 47 mm LCF ; 140 Degrees ; 3xD ; Spiral Flute ; EgiAs ; Series HP243
| Drill Bit Size / Cutting Diameter (DC) | 8.8 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 8.8 mm | Tool Type | Solid Carbide Drills |
| Length Group | 3xD | Flute Type | Spiral |
| Coating | EgiAs | Measurement Type | Metric |
| Applicable Material | | Hard Materials | Aluminum / Non-Ferrous Materials | | Series/List # | HP243 |
| Connection Diameter Machine Side (DCONMS) | #15 | Usable Length (LU) | 47 mm |
| Coolant Supply Property (CSP) | External | Length Chip Flute (LCF) | 47 mm |
| Point Angle (SIG) | 140 Degrees | Overall Length (OAL) | 89 mm |
| Functional Length (LF) | 47 mm | Flute Count (NOF) | 2 |
| Shape | Solid Carbide | Cutting Direction (HAND) | Right Hand |
Product Features
| Country of Origin | India |
Shipping Info
Package Length
3.50000
Package Width
.65000
Package Height
.55000
Package Weight
0.156
