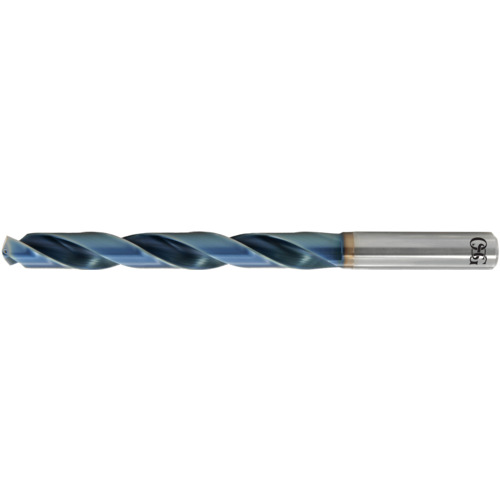

8.70MM HP CARB OH DRILL
SC Drill; 8.7 mm Dia. × 10.72 mm Shank Dia. × 131 mm OAL × 87 mm LCF ; 140 Degrees ; 8xD ; EgiAs ; Series HP258
| Drill Bit Size / Cutting Diameter (DC) | 8.7 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 8.7 mm | Tool Type | Solid Carbide Drills |
| Length Group | 8xD | Measurement Type | Metric |
| Coating | EgiAs | Series/List # | HP258 |
| Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Usable Length (LU) | 87 mm |
| Connection Diameter Machine Side (DCONMS) | 10.72 mm | Length Chip Flute (LCF) | 87 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Overall Length (OAL) | 131 mm |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 2 |
| Functional Length (LF) | 87 mm | Cutting Direction (HAND) | Right Hand |
| Shape | Solid Carbide |
Product Features
| Country of Origin | India |
Shipping Info
Package Length
5.10000
Package Width
.65000
Package Height
.55000
Package Weight
0.19
