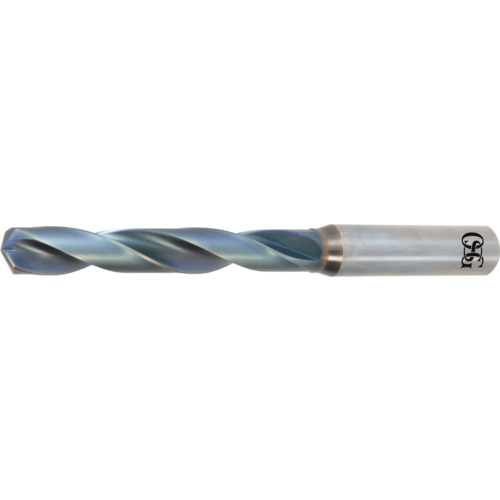

33/64″ Dia. x P Shank × 77 mm Flute Length × 124 mm OAL, 5xD, TiAlN, 2xD Flute, Solid Carbide Drill
SC Drill; 33/64″ Dia. x P Shank Dia. × 124 mm OAL × 77 mm LCF ; 140 Degrees ; 5xD ; Spiral Flute ; EgiAs ; Series HP245
| Drill Bit Size / Cutting Diameter (DC) | 33/64″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 33/64″ | Tool Type | Solid Carbide Drills |
| Decimal Equivalent | 0.5156″ | Flute Type | Spiral |
| Length Group | 5xD | Measurement Type | Inch |
| Coating | EgiAs | Series/List # | HP245 |
| Applicable Material | | Hard Materials | Aluminum / Non-Ferrous Materials | | Usable Length (LU) | 77 mm |
| Connection Diameter Machine Side (DCONMS) | P | Length Chip Flute (LCF) | 77 mm |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 124 mm |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 2 |
| Functional Length (LF) | 77 mm | Cutting Direction (HAND) | Right Hand |
Product Features
| Country of Origin | India |
Shipping Info
Package Length
4.85000
Package Width
.75000
Package Height
.70000
Package Weight
0.465
