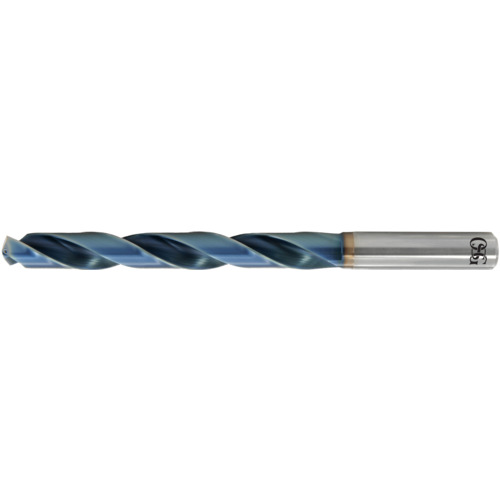

3.50MM HP CARB OH DRILL
SC Drill; 3.5 mm Dia. × 4 mm Shank Dia. × 77 mm OAL × 36 mm LCF ; 140 Degrees ; 8xD ; EgiAs ; Series HP253
| Drill Bit Size / Cutting Diameter (DC) | 3.5 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 3.5 mm | Tool Type | Solid Carbide Drills |
| Length Group | 8xD | Measurement Type | Metric |
| Coating | EgiAs | Series/List # | HP253 |
| Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Usable Length (LU) | 36 mm |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Length Chip Flute (LCF) | 36 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Overall Length (OAL) | 77 mm |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 2 |
| Functional Length (LF) | 36 mm | Cutting Direction (HAND) | Right Hand |
| Shape | Solid Carbide |
Product Features
| Country of Origin | India |
Shipping Info
Package Length
3.15000
Package Width
.45000
Package Height
.40000
Package Weight
0.02
