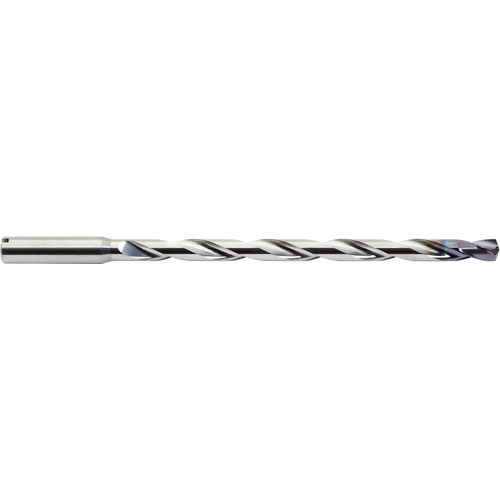

8 mm Dia. × 8 mm Shank × 120 mm Flute Length × 163 mm OAL, 2xD, AlTiN, 2xD Flute, Coolant Thru, Solid Carbide Drill
SC Drill; 8 mm Dia. × 8 mm Shank Dia. × 163 mm OAL × 120 mm LCF ; TiAlN ; Series 2XDCE
| Drill Bit Size / Cutting Diameter (DC) | 8 mm | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.315″ | Tool Type | Solid Carbide Drills |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 8 mm | Measurement Type | Metric |
| Coating | TiAlN | Series/List # | 2XDCE |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Usable Length (LU) | 96 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Length Chip Flute (LCF) | 120 mm |
| Shape | Solid Carbide | Overall Length (OAL) | 163 mm |
Product Features
| Family Description | Alternate Manufacture # 04360 | Country of Origin | USA |
Shipping Info
Package Length
6.40000
Package Width
.31000
Package Height
.31000
Package Weight
.173
