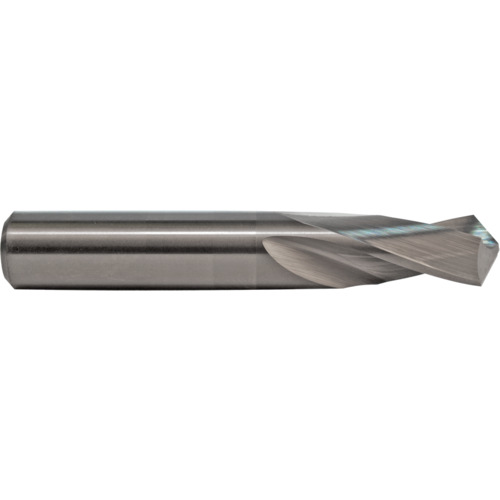

1 mm Dia. × 1 mm Shank × 6 mm Flute Length × 26 mm OAL, Uncoated, External Coolant, Round Solid Carbide Drill
SC Drill; 1 mm Dia. × 1 mm Shank Dia. × 26 mm OAL × 6 mm LCF ; Stub ; Uncoated
| Drill Bit Size / Cutting Diameter (DC) | 1 mm | Shape | Screw Machine |
| Decimal Equivalent | 0.0394″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 1 mm | Tool Type | Screw Machine |
| Length Group | Stub | Measurement Type | Metric |
| Coating | Uncoated | Usable Length (LU) | 6 mm |
| Connection Diameter Machine Side (DCONMS) | 1 mm | Length Chip Flute (LCF) | 6 mm |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 26 mm |
| Shank Type | Round |
Product Features
| Family Description | Alternate Manufacture # 26002 | Country of Origin | USA |
| Remarks | •Solid Carbide Stub Length Drill •3X Drill Length •118 degree point angle •21 degree helix •designed to allow high feed rates with good chip flow. •Four facet drill point minimizes drill wander and assures accurately sized holes. •Shorter length reduces deflection and vibration, increases drill accuracy and improved tool life. |
Shipping Info
Package Length
1.62500
Package Width
.25000
Package Height
.25000
Package Weight
0.001
