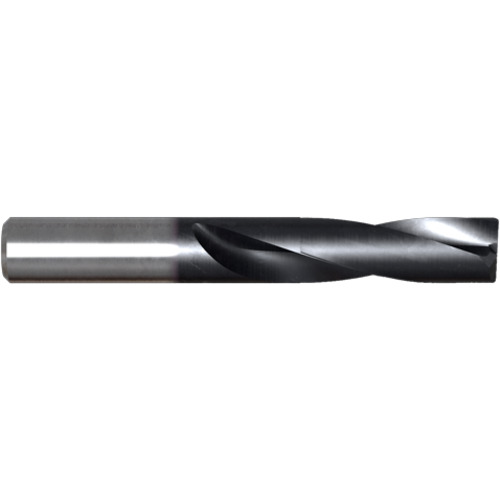

1/4X8X30X70 CBD DREAM
SC Drill; 1/4″ Dia. × 8 mm Shank Dia. × 70 mm OAL × 30 mm LCF ; 180 Degrees ; 2xD ; AlCrN ; Series DPP447
| Drill Bit Size / Cutting Diameter (DC) | 1/4″ | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 1/4″ | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.25″ | Tool Type | Flat Bottom Without Coolant Holes (2XD) |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 6.35 mm | Measurement Type | Inch |
| Length Group | 2xD | Series/List # | DPP447 |
| Coating | AlCrN | Usable Length (LU) | 30 mm |
| Applicable Material | | Steel | Stainless Steel | | Length Chip Flute (LCF) | 30 mm |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Overall Length (OAL) | 70 mm |
| Coolant Supply Property (CSP) | External | Flute Count (NOF) | 2 |
| Point Angle (SIG) | 180 Degrees | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 20 Degrees | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3.125
Package Width
0.625
Package Height
0.625
Package Weight
0.08
