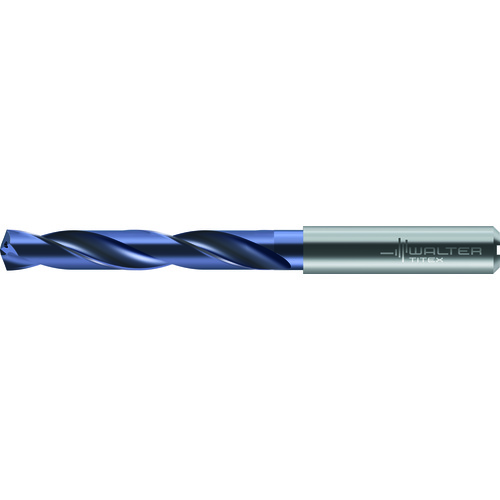

DC150-05-03.000A1 WJ30RE
SC Drill; 3 mm Dia. × 6 mm Shank Dia. × 66 mm OAL × 28 mm LCF ; 140 Degrees ; 5xD ; Series DC150-WJ30RE
Additional Tariff Surcharge of 8 %
| Drill Bit Size / Cutting Diameter (DC) | 3 mm | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.1181″ | Tool Type | Solid Carbide Drills |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 3 mm | Grade | WJ30RE |
| Length Group | 5xD | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Series/List # | DC150-WJ30RE |
| Coolant Supply Property (CSP) | Coolant Thru | Usable Length (LU) | 23 mm |
| Point Angle (SIG) | 140 Degrees | Length Chip Flute (LCF) | 28 mm |
| Flute Helix Angle (FHA) | 30 Degrees | Overall Length (OAL) | 66 mm |
| Shank Type | Round | Flute Count (NOF) | 2 |
| Shank Standard | DIN 6537 L |
Product Features
| Country of Origin | China |
Shipping Info
Package Weight
0.042
