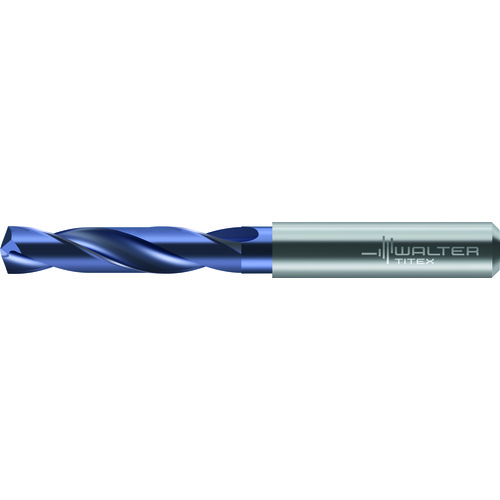

19 mm Dia. × 20 mm Shank × 79 mm Flute Length × 131 mm OAL, 3xD, 140°, 2xD Flute, External Coolant, DIN 6537 K, Round Solid Carbide Drill DC150-03-19.000A0-WJ30RE
SC Drill; 19 mm Dia. × 20 mm Shank Dia. × 131 mm OAL × 79 mm LCF ; 140 Degrees ; 3xD ; Series DC150-WJ30RE
Additional Tariff Surcharge of 8 %
| Drill Bit Size / Cutting Diameter (DC) | 19 mm | Shape | Solid Carbide |
| Decimal Equivalent | 0.748″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 19 mm | Tool Type | Solid Carbide Drills |
| Length Group | 3xD | Grade | WJ30RE |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Measurement Type | Metric |
| Coolant Supply Property (CSP) | External | Series/List # | DC150-WJ30RE |
| Point Angle (SIG) | 140 Degrees | Usable Length (LU) | 55 mm |
| Flute Helix Angle (FHA) | 30 Degrees | Length Chip Flute (LCF) | 79 mm |
| Shank Type | Round | Overall Length (OAL) | 131 mm |
| Shank Standard | DIN 6537 K |
Product Features
| Country of Origin | China |
Shipping Info
Package Weight
0.981
