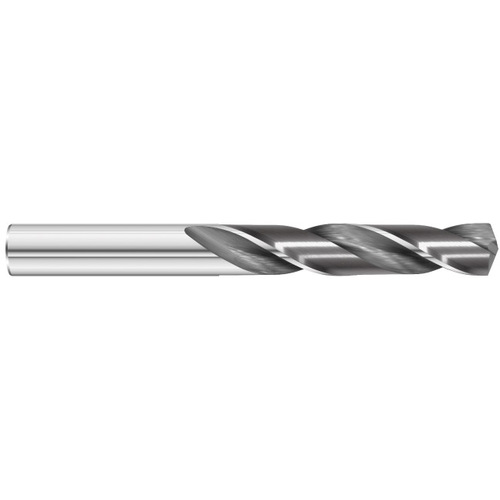

‎E Dia. x 1/4″ Shank × 2″ Flute Length × 3-1/4″ OAL, 7xD, 135°, Uncoated, 2xD Flute, External Coolant, Round Solid Carbide Drill

‹ ›

‎E Dia. x 1/4″ Shank × 2″ Flute Length × 3-1/4″ OAL, 7xD, 135°, Uncoated, 2xD Flute, External Coolant, Round Solid Carbide Drill

‎SC Drill; E Dia. x 1/4″ Shank Dia. × 3-1/4″ OAL × 2″ LCF ; 135 Degrees ; 7xD ; Uncoated ; Series 1500

Item # FUL 17702

Brand: Fullerton Tool

MFG #: 17702

Legacy Part #: FT8217702

Trade Name: 1500 Notched Cam Point Drill

Quantity Available

Drill Bit Size / Cutting Diameter (DC)

Shank Type

Round

Decimal Equivalent

0.25″

Shape

Solid Carbide

Drill Bit Size / Cutting Diameter (DC) - Letter / Wire Gauge

Cutting Edge Material

Carbide

Length Group

7xD

Tool Type

Solid Carbide Drills

Coating

Uncoated

Point Shape

Notch

Connection Diameter Machine Side (DCONMS)

1/4″

Measurement Type

Letter

Coolant Supply Property (CSP)

External

Series/List #

1500

Point Angle (SIG)

135 Degrees

Length Chip Flute (LCF)

2″

Flute Helix Angle (FHA)

30 Degrees

Overall Length (OAL)

‎3-1/4″

Product Features

Remarks

‎

2 Flutes

30° Helix

135° Notched Cam Point

Right Hand Spiral

Standard Uncoated and FC-7 Coating

Metric and Inch Based Tools

Dura Carb (Micrograin)

Shank Diameter Tolerance: +.0000″ -.0015″ / +0.000–0.038mm

Cutter Diameter Tolerance: +.0000″ -.0005″ / +0.000–0.013mm

*Items are made to order and not planned as a normal stocked item. Contact us for current stock status or for lead time at time of order. If you have an * item that you need us to stock, please contact us and we will work with you.

Country of Origin

USA

Shipping Info

Package Weight

.062
