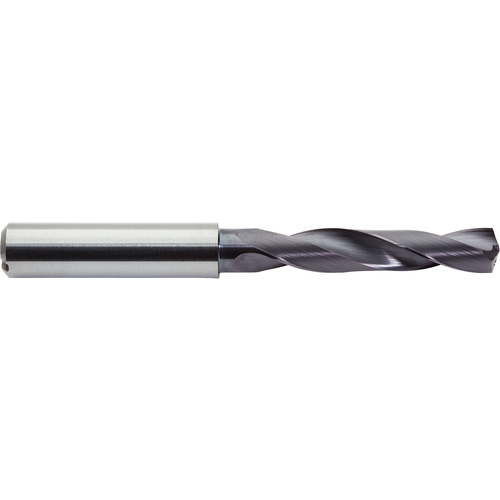

5.1 mm Dia. × 6 mm Shank × 28 mm Flute Length × 66 mm OAL, 2xD, 142°, AlTiN, 2 Flute, Coolant Thru, Round Solid Carbide Drill
SC Drill; 5.1 mm Dia. × 6 mm Shank Dia. × 66 mm OAL × 28 mm LCF ; 142 Degrees ; TiAlN ; Series 2XDCS
| Drill Bit Size / Cutting Diameter (DC) | 5.1 mm | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.2008″ | Tool Type | Solid Carbide Drills |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 5.1 mm | Measurement Type | Metric |
| Coating | TiAlN | Series/List # | 2XDCS |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Usable Length (LU) | 20 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Length Chip Flute (LCF) | 28 mm |
| Point Angle (SIG) | 142 Degrees | Overall Length (OAL) | 66 mm |
| Flute Helix Angle (FHA) | 30 Degrees | Flute Count (NOF) | 2 |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Shape | Solid Carbide |
Product Features
| Family Description | Alternate Manufacture # 04462 | Country of Origin | USA |
Shipping Info
Package Length
2.60000
Package Width
.31000
Package Height
.31000
Package Weight
.044
