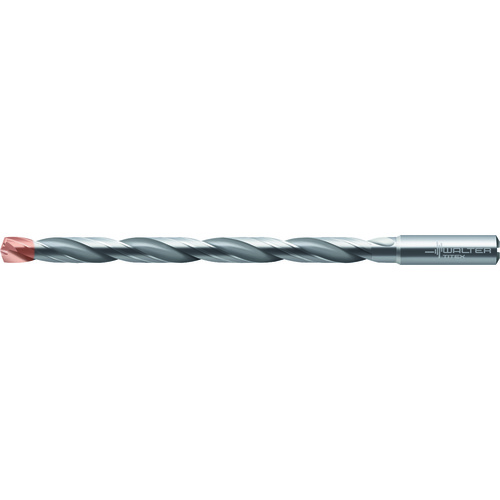

17.5 mm Dia. × 18 mm Shank × 234 mm Flute Length × 285 mm OAL, 140°, 2xD Flute, Coolant Thru, DIN 6535 HA, Round Solid Carbide Drill A6589DPP-17.5
SC Drill; 17.5 mm Dia. × 18 mm Shank Dia. × 285 mm OAL × 234 mm LCF ; 140 Degrees ; 12xD ; Series A6589DPP
Additional Tariff Surcharge of 8 %
| Drill Bit Size / Cutting Diameter (DC) | 17.5 mm | Shank Standard | DIN 6535 HA |
| Decimal Equivalent | 0.689″ | Shape | Solid Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 17.5 mm | Cutting Edge Material | Carbide |
| Length Group | 12xD | Tool Type | Solid Carbide Drills |
| Connection Diameter Machine Side (DCONMS) | 18 mm | Measurement Type | Metric |
| Coolant Supply Property (CSP) | Coolant Thru | Series/List # | A6589DPP |
| Point Angle (SIG) | 140 Degrees | Usable Length (LU) | 216 mm |
| Flute Helix Angle (FHA) | 30 Degrees | Length Chip Flute (LCF) | 234 mm |
| Shank Type | Round | Overall Length (OAL) | 285 mm |
Product Features
| Family Description | A6589DPP-17.5 | Country of Origin | France |
Shipping Info
Package Weight
1.332
