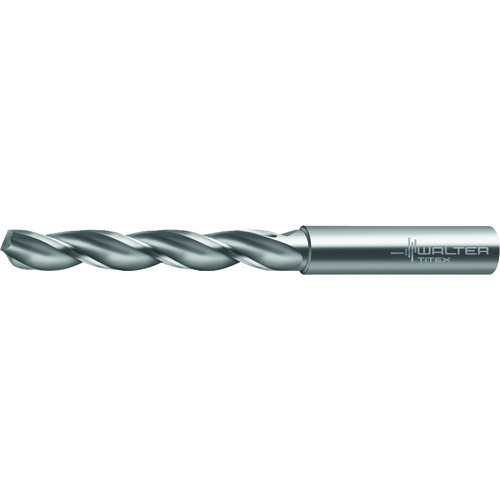

7 mm Dia. × 8 mm Shank × 53 mm Flute Length × 91 mm OAL, 5xD, 130°, 3xD Flute, External Coolant, DIN 6537 L, Round Solid Carbide Drill A3367-7
SC Drill; 7 mm Dia. × 8 mm Shank Dia. × 91 mm OAL × 53 mm LCF ; 130 Degrees ; 5xD ; Series A3367
Additional Tariff Surcharge of 8 %
| Drill Bit Size / Cutting Diameter (DC) | 7 mm | Shank Standard | DIN 6537 L |
| Decimal Equivalent | 0.2756″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 7 mm | Tool Type | Solid Carbide Drills |
| Length Group | 5xD | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Series/List # | A3367 |
| Coolant Supply Property (CSP) | External | Usable Length (LU) | 43 mm |
| Point Angle (SIG) | 130 Degrees | Length Chip Flute (LCF) | 53 mm |
| Flute Helix Angle (FHA) | 30 Degrees | Overall Length (OAL) | 91 mm |
| Shank Type | Round | Flute Count (NOF) | 3 |
Product Features
| Family Description | A3367-7 | Country of Origin | China |
Shipping Info
Package Weight
0.144
