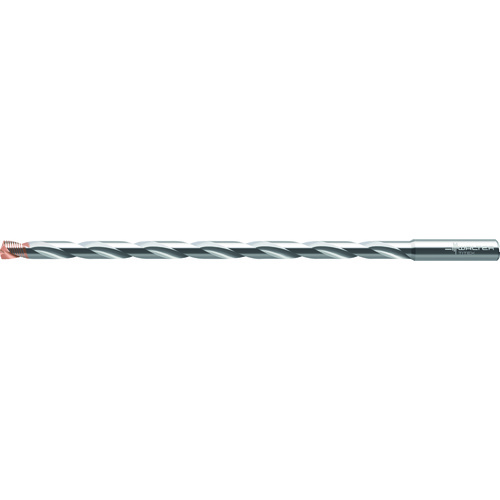

6 mm Dia. × 6 mm Shank × 144 mm Flute Length × 182 mm OAL, 20xD, 140°, 2xD Flute, Coolant Thru, DIN 6535 HA, Round Solid Carbide Drill DC170-20-06.000A1-WJ30EJ
SC Drill; 6 mm Dia. × 6 mm Shank Dia. × 182 mm OAL × 144 mm LCF ; 140 Degrees ; 20xD ; Series DC170-WJ30EJ
Additional Tariff Surcharge of 8 %
| Drill Bit Size / Cutting Diameter (DC) | 6 mm | Shape | Solid Carbide |
| Decimal Equivalent | 0.2362″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 6 mm | Tool Type | Solid Carbide Drills |
| Length Group | 20xD | Grade | WJ30EJ |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Measurement Type | Metric |
| Coolant Supply Property (CSP) | Coolant Thru | Series/List # | DC170-WJ30EJ |
| Point Angle (SIG) | 140 Degrees | Usable Length (LU) | 135 mm |
| Flute Helix Angle (FHA) | 30 Degrees | Length Chip Flute (LCF) | 144 mm |
| Shank Type | Round | Overall Length (OAL) | 182 mm |
| Shank Standard | DIN 6535 HA |
Product Features
| Family Description | DC170-20-06.000A1 WJ30EJ | Country of Origin | France |
Shipping Info
Package Weight
0.141
