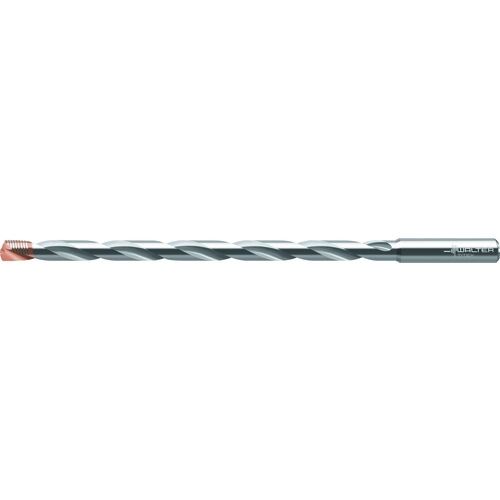

3/8″ Dia. × 3/8″ Shank × 7-3/32″ Flute Length × 8-13/16″ OAL, 16xD, 140°, 2xD Flute, Coolant Thru, DIN 6535 HA, Round Solid Carbide Drill DC170-16-09.525A1-WJ30EJ
SC Drill; 3/8″ Dia. × 3/8″ Shank Dia. × 8-13/16″ OAL × 7-3/32″ LCF ; 140 Degrees ; 16xD ; Series DC170-WJ30EJ
| Drill Bit Size / Cutting Diameter (DC) | 3/8″ | Shape | Solid Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 3/8″ | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.375″ | Tool Type | Solid Carbide Drills |
| Length Group | 16xD | Grade | WJ30EJ |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Measurement Type | Inch |
| Coolant Supply Property (CSP) | Coolant Thru | Series/List # | DC170-WJ30EJ |
| Point Angle (SIG) | 140 Degrees | Usable Length (LU) | 6-1/2″ |
| Flute Helix Angle (FHA) | 30 Degrees | Length Chip Flute (LCF) | 7-3/32″ |
| Shank Type | Round | Overall Length (OAL) | 8-13/16″ |
| Shank Standard | DIN 6535 HA |
Product Features
| Family Description | DC170-16-09.525A1 WJ30EJ | Country of Origin | USA |
Shipping Info
Package Weight
0.417
