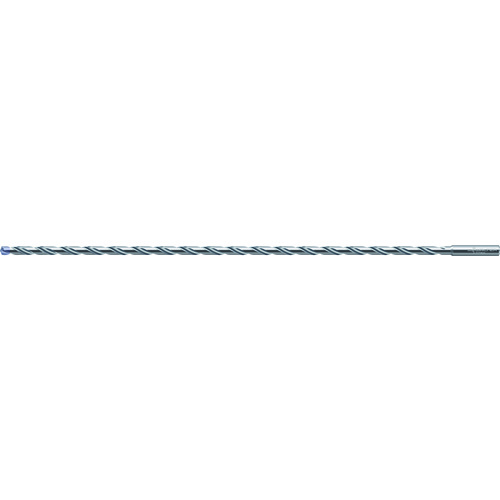

6.8 mm Dia. × 8 mm Shank × 368 mm Flute Length × 409 mm OAL, 130°, 2xD Flute, Coolant Thru, DIN 6535 HA, Round Solid Carbide Drill A7595TTP-6.8
SC Drill; 6.8 mm Dia. × 8 mm Shank Dia. × 409 mm OAL × 368 mm LCF ; 130 Degrees ; Series A7595TTP
Additional Tariff Surcharge of 8 %
| Drill Bit Size / Cutting Diameter (DC) | 6.8 mm | Shape | Solid Carbide |
| Decimal Equivalent | 0.2677″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 6.8 mm | Tool Type | Solid Carbide Drills |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Measurement Type | Metric |
| Coolant Supply Property (CSP) | Coolant Thru | Series/List # | A7595TTP |
| Point Angle (SIG) | 130 Degrees | Usable Length (LU) | 357 mm |
| Flute Helix Angle (FHA) | 30 Degrees | Length Chip Flute (LCF) | 368 mm |
| Shank Type | Round | Overall Length (OAL) | 409 mm |
| Shank Standard | DIN 6535 HA |
Product Features
| Family Description | A7595TTP-6.8 | Country of Origin | France |
Shipping Info
Package Weight
0.419
