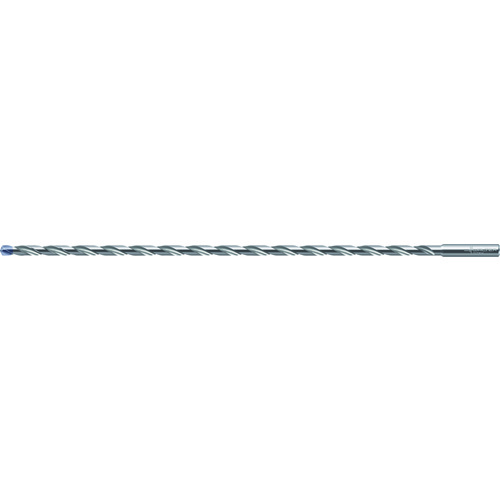

9/32″ Dia. × 9/32″ Shank × 12-51/64″ Flute Length × 14-13/32″ OAL, 130°, 2xD Flute, Coolant Thru, DIN 6535 HA, Round Solid Carbide Drill A7495TTP-9/32IN
SC Drill; 9/32″ Dia. × 9/32″ Shank Dia. × 14-13/32″ OAL × 12-51/64″ LCF ; 130 Degrees ; Series A7495TTP
Additional Tariff Surcharge of 8 %
| Drill Bit Size / Cutting Diameter (DC) | 9/32″ | Shape | Solid Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 9/32″ | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.2813″ | Tool Type | Solid Carbide Drills |
| Connection Diameter Machine Side (DCONMS) | 9/32″ | Measurement Type | Inch |
| Coolant Supply Property (CSP) | Coolant Thru | Series/List # | A7495TTP |
| Point Angle (SIG) | 130 Degrees | Usable Length (LU) | 12-21/64″ |
| Flute Helix Angle (FHA) | 30 Degrees | Length Chip Flute (LCF) | 12-51/64″ |
| Shank Type | Round | Overall Length (OAL) | 14-13/32″ |
| Shank Standard | DIN 6535 HA |
Product Features
| Family Description | A7495TTP-9/32IN | Country of Origin | France |
